#751 closed upgrade (Done)

Important: Added new vertical stretching functional

Reported by: arango Owned by:
Priority: major Milestone: Release ROMS/TOMS 3.7
Component: Nonlinear Version: 3.7
Keywords: Cc:

Description

Added new vertical stretching option, Vstretching=5, based on a quadratic Legendre polynomial function that allows higher resolution near the surface developed by Souza et al. (2015). Many thanks to Joao Sousa and Brian Powell for coding and testing this new vertical stretching. For more documentation, please check WikiROMS or the publication reference.

  • The new vertical stretching functional is coded in set_scoord.F:
    !
    !----------------------------------------------------------------------
    ! Stretching 5 case using a quadratic Legendre polynomial function
    ! aproach for the s-coordinate to enhance the surface exchange layer.
    !
    ! J. Souza, B.S. Powell, A.C. Castillo-Trujillo, and P. Flament, 2015:
    !   The Vorticity Balance of the Ocean Surface in Hawaii from a
    !   Regional Reanalysis.'' J. Phys. Oceanogr., 45, 424-440.
    !
    ! Added by Joao Marcos Souza - SOEST - 05/07/2012.
    !-----------------------------------------------------------------------
    !
          ELSE IF (Vstretching(ng).eq.5) THEN
            SCALARS(ng)%sc_w(N(ng))=0.0_r8
            SCALARS(ng)%Cs_w(N(ng))=0.0_r8
            DO k=N(ng)-1,1,-1
              rk=REAL(k,r8)
              rN=REAL(N(ng),r8)
              sc_w=-(rk*rk - 2.0_r8*rk*rN + rk + rN*rN - rN)/(rN*rN - rN)-  &
                   0.01_r8*(rk*rk - rk*rN)/(1.0_r8 - rN)
              SCALARS(ng)%sc_w(k)=sc_w
              IF (theta_s(ng).gt.0.0_r8) THEN
                Csur=(1.0_r8-COSH(theta_s(ng)*sc_w))/                       &
         &           (COSH(theta_s(ng))-1.0_r8)
              ELSE
                Csur=-sc_w**2
              END IF
              IF (theta_b(ng).gt.0.0_r8) THEN
                Cbot=(EXP(theta_b(ng)*Csur)-1.0_r8)/                        &
         &           (1.0_r8-EXP(-theta_b(ng)))
                SCALARS(ng)%Cs_w(k)=Cbot
              ELSE
                SCALARS(ng)%Cs_w(k)=Csur
              END IF
            END DO
            SCALARS(ng)%sc_w(0)=-1.0_r8
            SCALARS(ng)%Cs_w(0)=-1.0_r8
    !
            DO k=1,N(ng)
              rk=REAL(k,r8)-0.5_r8
              rN=REAL(N(ng),r8)
              sc_r=-(rk*rk - 2.0_r8*rk*rN + rk + rN*rN - rN)/(rN*rN - rN)-  &
                   0.01_r8*(rk*rk - rk*rN)/(1.0_r8 - rN)
              SCALARS(ng)%sc_r(k)=sc_r
              IF (theta_s(ng).gt.0.0_r8) THEN
                Csur=(1.0_r8-COSH(theta_s(ng)*sc_r))/                       &
         &           (COSH(theta_s(ng))-1.0_r8)
              ELSE
                Csur=-sc_r**2
              END IF
              IF (theta_b(ng).gt.0.0_r8) THEN
                Cbot=(EXP(theta_b(ng)*Csur)-1.0_r8)/                        &
         &           (1.0_r8-EXP(-theta_b(ng)))
                SCALARS(ng)%Cs_r(k)=Cbot
              ELSE
                SCALARS(ng)%Cs_r(k)=Csur
              END IF
            END DO
          END IF

    The new functional is similar to Vstretching=4, but with a quadratic instead or linearly varying fractional vertical coordinate, s.
  • The Matlab scripts stretching.m, set_depth.m, and scoord.m were updated with the new vertical stretching option. The difference between Vstretchin=4 and Vstretching=5 is illustrated below.

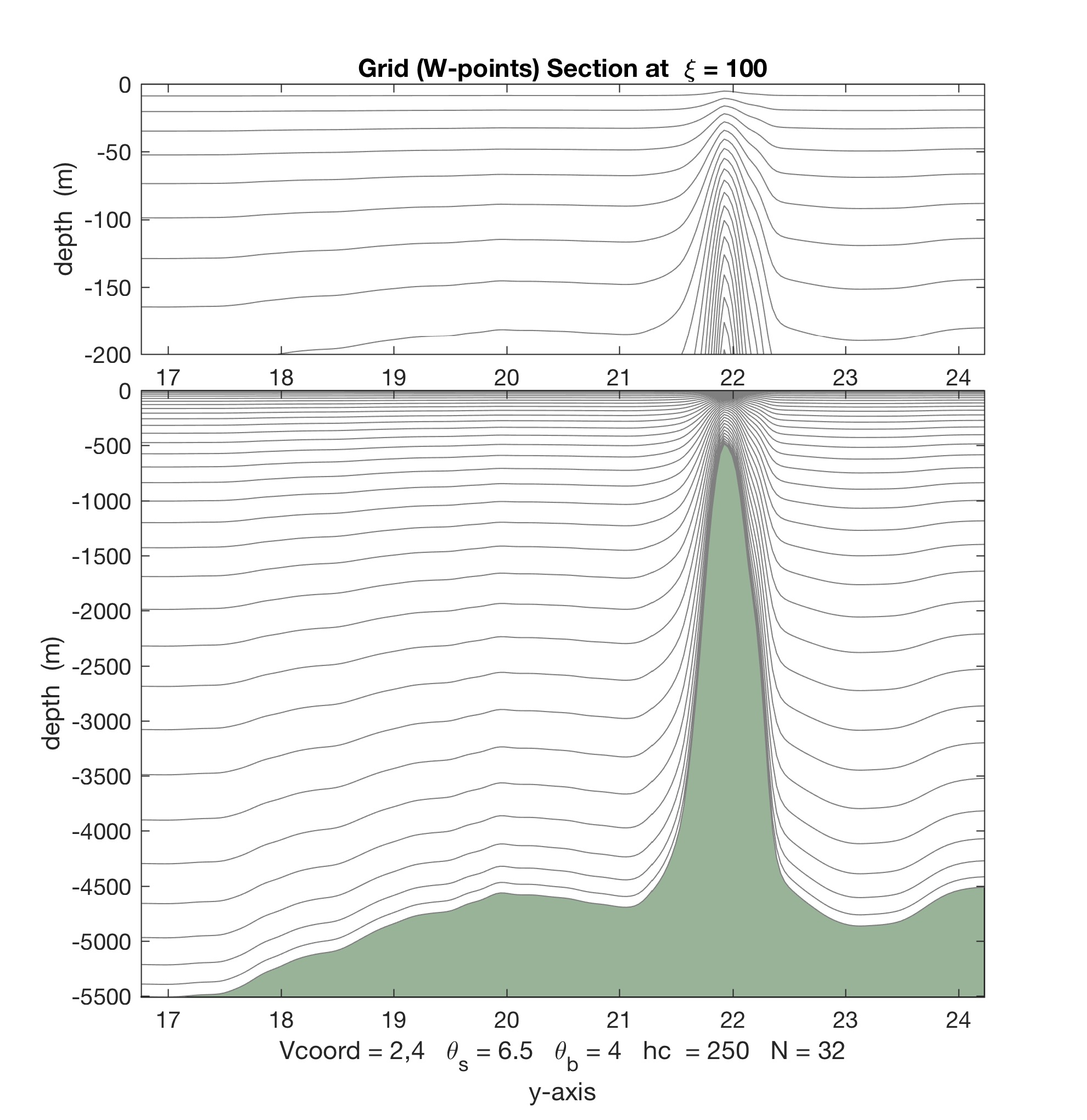

For Vtransform=2 and Vstretching=4, we get almost 4 vertical levels in the top 50 m:

https://www.myroms.org/trac/Vstretching_4.jpg

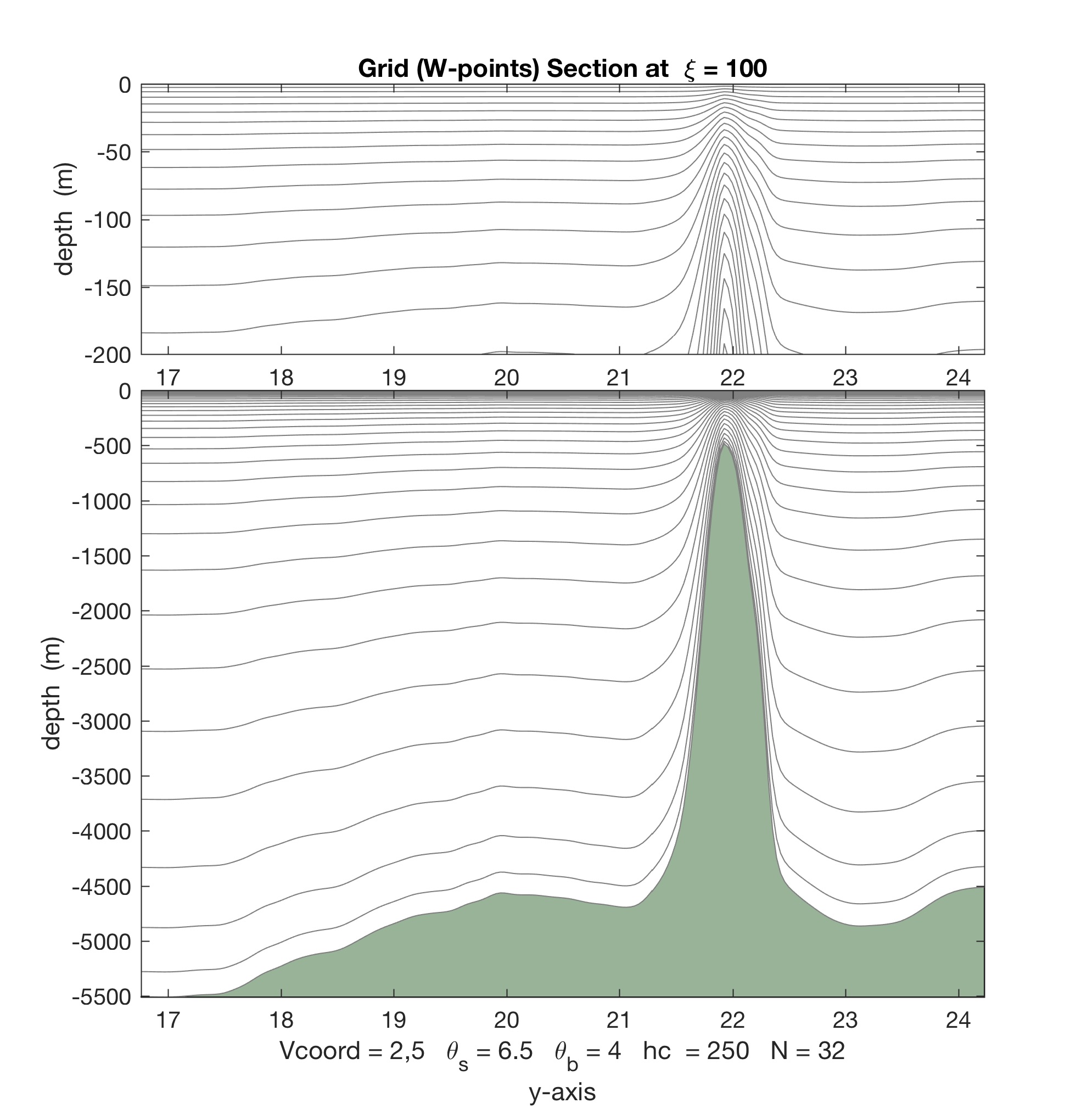

Contrarily, with Vtransform=2 and Vstretching=5, we double the number of vertical levels to 8 in the top 50 m: https://www.myroms.org/trac/Vstretching_5.jpg

Notice that the increased vertical resolution at the near-surface causes a loss of resolution at the bottom.

  • All the input ocean_*.in scripts were modified to update the documentation about Vstretching.

Reference:

Souza, J. M., B. Powell, A. C. Castillo-Trujillo, and P. Flament, 2015: The Vorticity Balance of the Ocean Surface in Hawaii from a Regional Reanalysis, J. Phys. Oceanogr., 45, 424-440, doi:10.1175/JPO-D-14-0074.1.

Change History (1)

comment:1 Changed 3 years ago by arango

  • Resolution set to Done
  • Status changed from new to closed
